LDO 2666 R/F

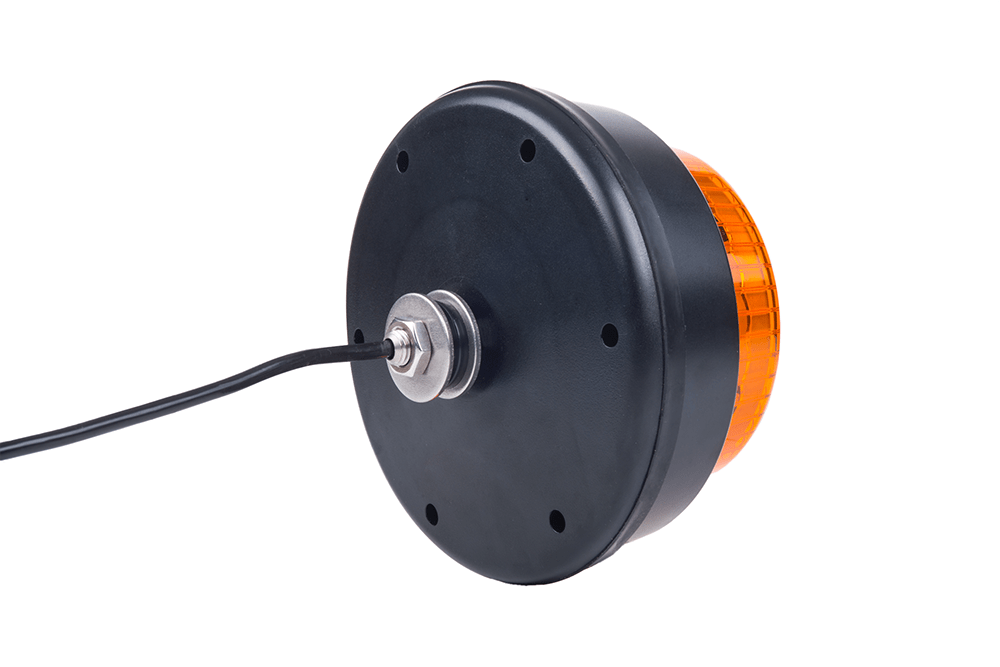

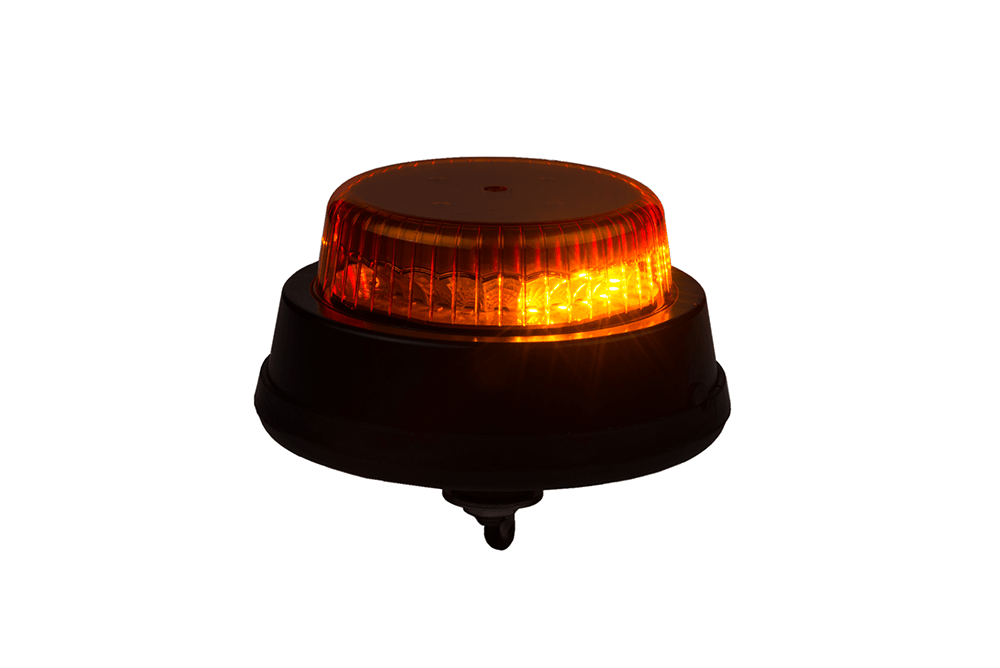

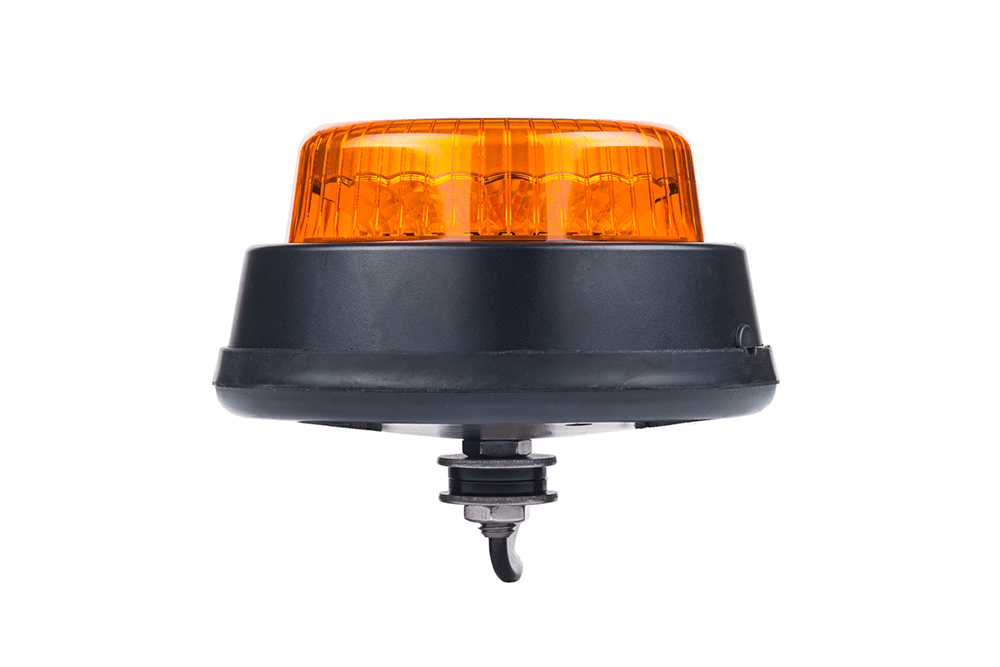

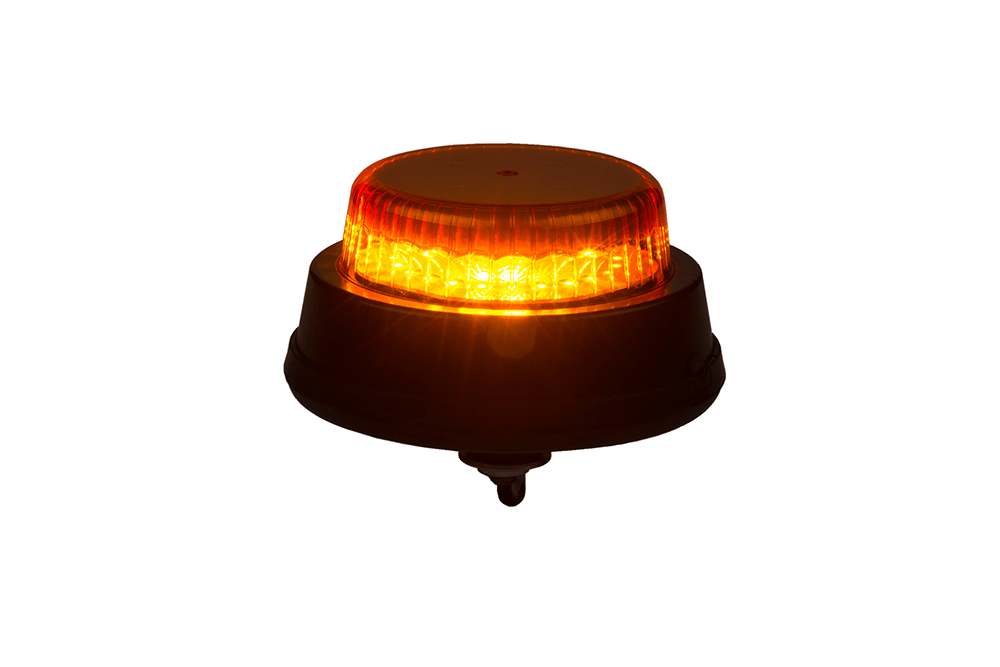

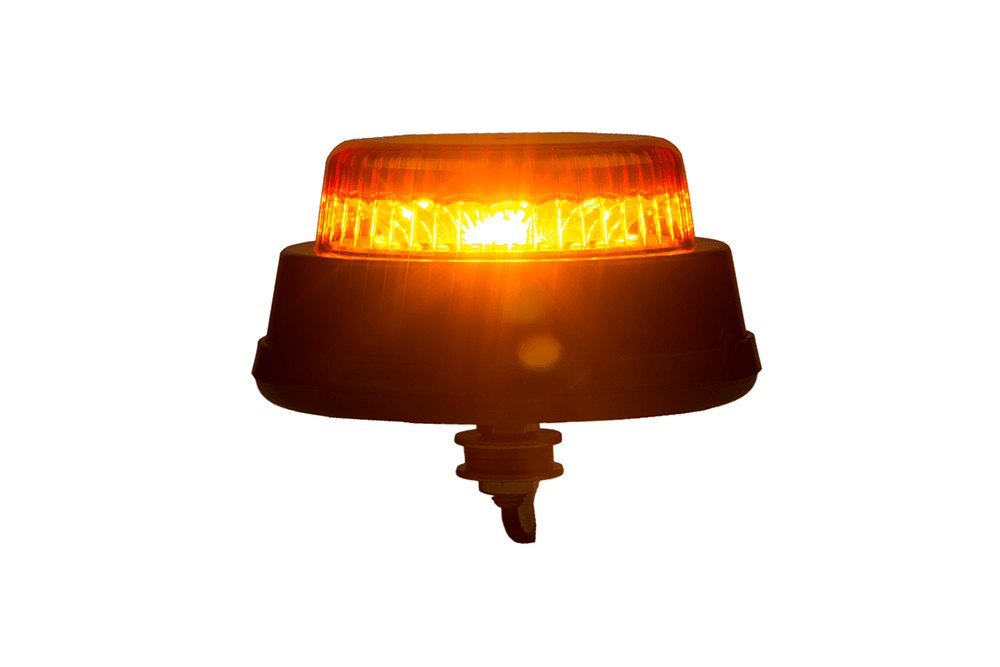

Beacon light LDO 2666 R/F

Beacon light with threaded tube HOR 110B, 12/24 V, orange.

Working mode: R/F-rotation-flash

Lamp type: LED

Beacon light LDO 2666 R/F (technical drawing) 1 (beacon-light-ldo-2666-r-f-technical-drawing-1.ZIP)

DOWNLOAD

Beacon light LDO 2666 R/F (homologation) 1 (beacon-light-ldo-2666-r-f-homologation-1.ZIP)

DOWNLOAD

Page content (ldo-2666-r-f.ZIP)

DOWNLOAD

Light group

HOR 110B

LED Quantity

24

Light category

warning

Supply voltage

12/24 V

The color of the light

amber

rated power

19 W

Operating temperature range

from -30°C to +50°C

Cable

3×0, 5 m, 5 mm2; cable length 1, round

How to connect

threaded tube

LED light

yes

Ingress Protection Degree

IP 68
