LD 526

Marker light with a rubber pad LD 526

SKU: 5903116345261 Categories: Agricultural machines, Buses and coaches, Caravans, Marker lights, Minibüsler, Semi-trailers, Trailers and tow trucks, Trucks Tags: ld 526, marker light

Description
Additional information

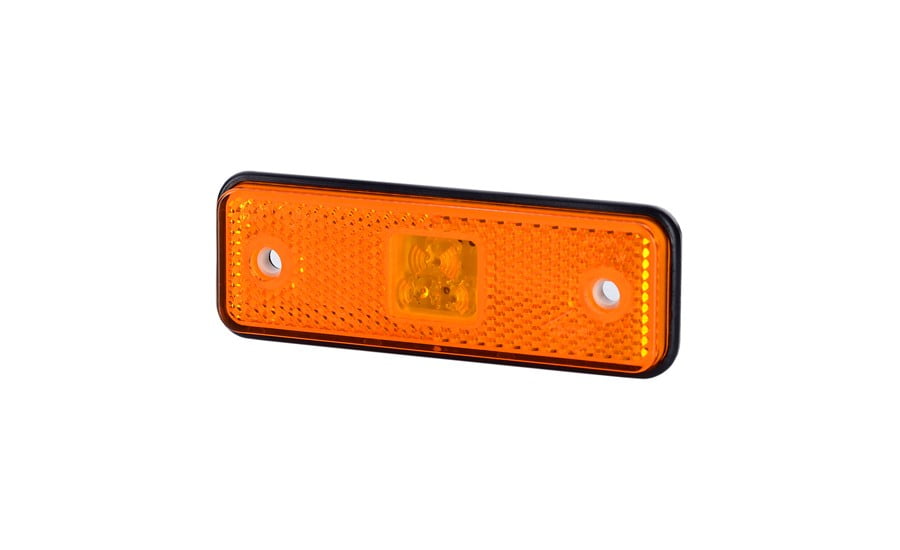

Side marker light (orange), with reflective device and with a rubber pad.

Available colors:

red
orange
white

Lamp type: LED

Marker light with a rubber pad LD 526 (homologation) 1 (marker-light-with-a-rubber-pad-ld-526-homologation-1.ZIP)

Marker light with a rubber pad LD 526 (homologation) 2 (marker-light-with-a-rubber-pad-ld-526-homologation-2.ZIP)

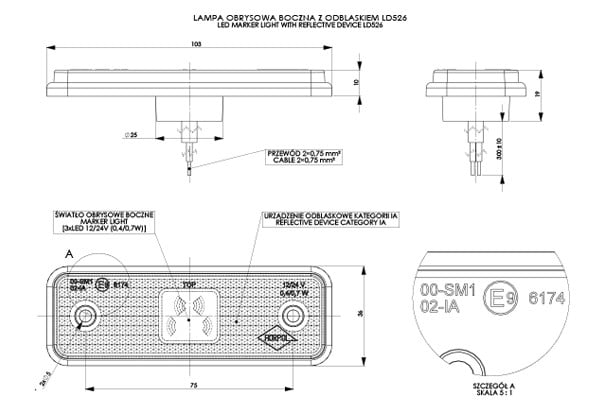

Marker light with a rubber pad LD 526 (technical drawing) 1 (marker-light-with-a-rubber-pad-ld-526-technical-drawing-1.ZIP)

Page content (ld-526.ZIP)

Light group	HOR 55
LED Quantity	3
Light category	marker
Supply voltage	12/24 V
rated power	0, 4/0, 7 W
Reflection	yes
Operating temperature range	from -30°C to +50°C
Cable	2×0, 3 m, 75 mm2; cable length 0
Side marker light	yes
Side	universal
LED light	yes
